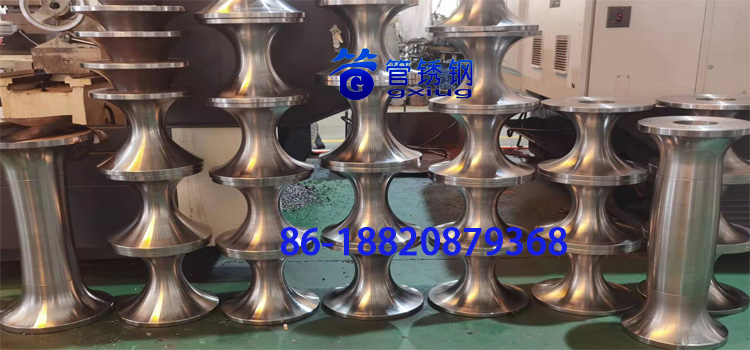

As a necessary hardware workpiece for the production of stainless steel welded pipe, the tolerance control effect of stainless steel pipe roller is directly related to the standardization of pipe shape and size. If the tolerance design of stainless steel pipe roller is unreasonable or the control is not in place, the subsequent repair trouble is inevitable. Stainless steel pipe making machine and stainless steel pipe roller are part of our main business of GXG technology. Let's talk about the tolerance design and control of pipe making mould.

In fact, the tolerance design and control of stainless steel pipe rollers are relatively simple. You only need to pay attention to the shaft diameter of stainless steel pipe making machine and the selected bearing model. Why pay special attention to these two factors? Many stainless steel pipe making machines are non-standard customized equipment, and the shaft diameter is different. Moreover, after confirming these parameters, the tolerance factor of shaft diameter should be considered, Because the tolerance of the hole of the die should be designed according to the tolerance of the shaft diameter, so as to achieve effective fitting without shaking, otherwise there will be no accuracy. The factors of selecting bearings are better understood. The dimensions of bearings of different models are different, but the tolerances of bearings in international standards are the same, so the bearing model and factory should be considered when installing bearings. Taking these factors into account, it is easier to design. Finally, effective zeroing must be carried out during processing, and the runout of the pipe making roller will be large, so the effect of previous efforts will be greatly reduced.

The tolerance design and control of stainless steel pipe roller is still relatively easy. As long as you pay more attention and pay more attention to processing, it is not difficult to design an ideal pipe mold. It won't be. Come to our GXG technology to make a set of pipe mold for you.

Key words:stainless steel pipe roller
