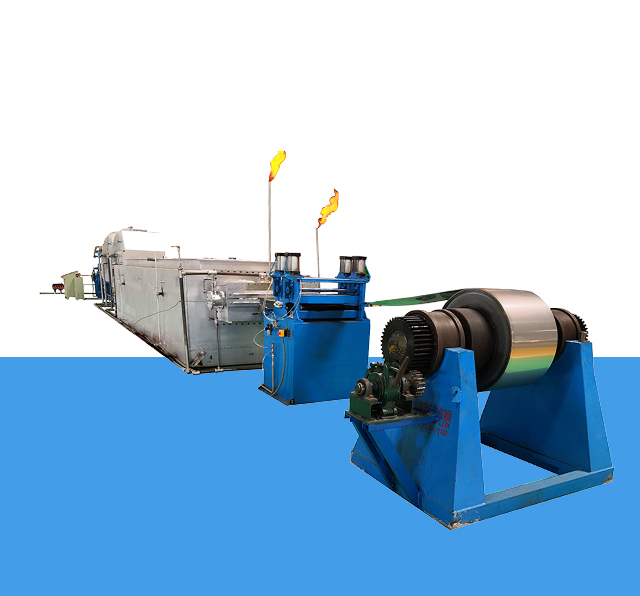

Metal steel coil annealing furnace
Material: stainless steel, carbon steel, copper, etc
Material width: 150-1250mm
Thickness range: 0.2-3.0mm
Heating mode: electric heating, gas heating
Product details
Product Main Picture
Metal steel coil annealing furnace
Product Description
Bright continuous annealing furnace for metal coil is a professional equipment for heat treatment and annealing of metal coil. The annealed steel coil can effectively remove the stress produced in the cold rolling process, restore the metallographic structure of the steel coil, and restore the brightness of the steel coil at the same time, which is convenient for the subsequent use of the steel coil or the cold rolling processing. It is widely used in the annealing process of stainless steel coil, carbon steel coil, copper coil and other metal coils.

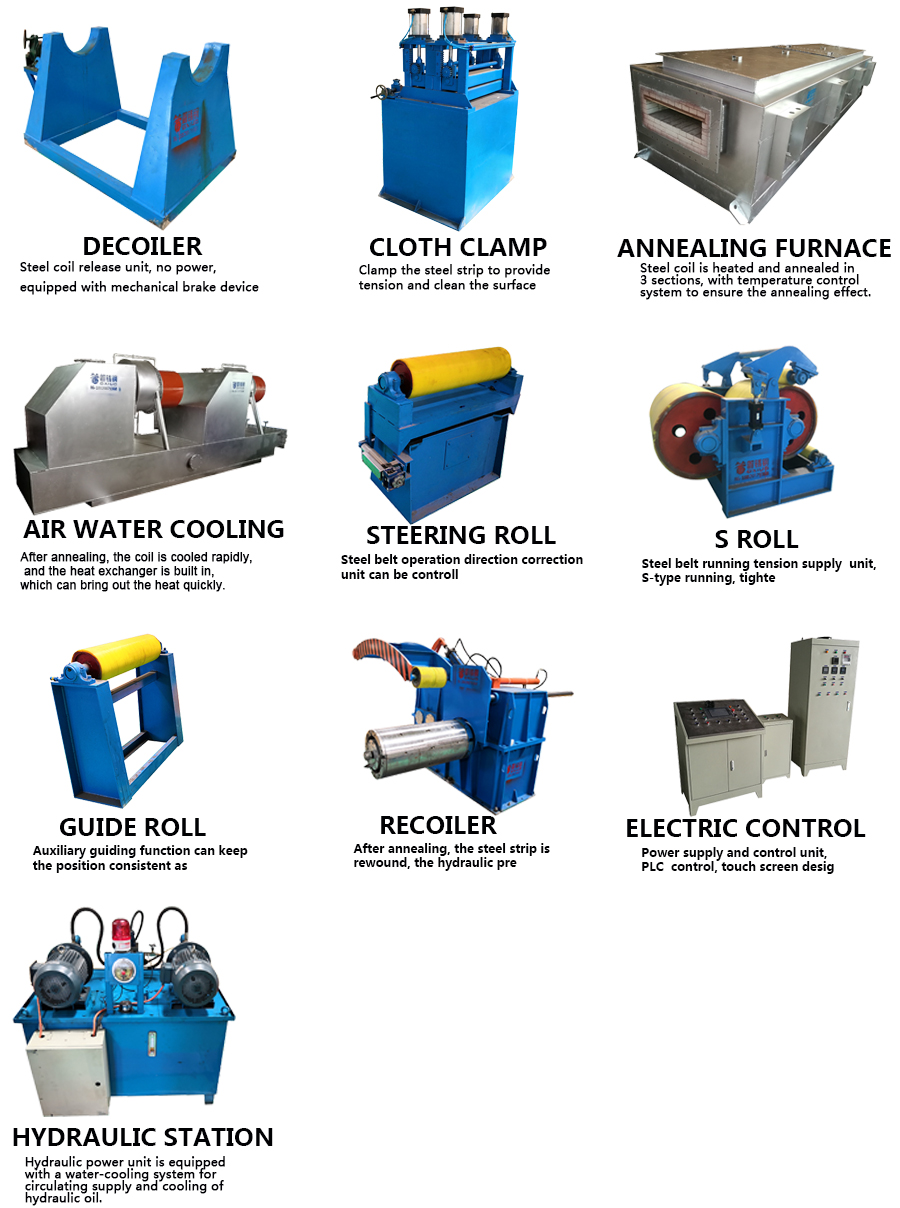

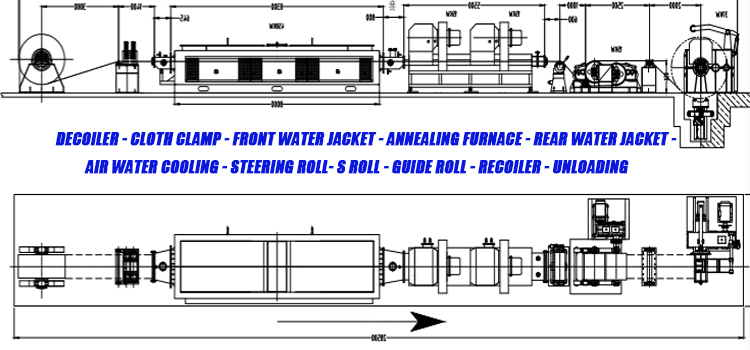

Production Process
Model & Parameter
Metal steel coil bright annealing furnace comparison table |
|||||||||
Model |
GXG-350 |
GXG-450 |
GXG-550 |
GXG-750 |
GXG-850 |
GXG-950 |
GXG-1150 |
GXG-1350 |
|
Coil width(mm) |
150-250 |
250-350 |
350-450 |
450-650 |
450-750 |
550-850 |
850-1050 |
650-1250 |
|
Coil material thickness(mm) |
0.2-1.0 |
0.2-1.5 |
0.2-1.5 |
0.2-2.0 |
0.2-2.0 |
0.5-2.5 |
0.5-2.5 |
0.5-3.0 |
-
