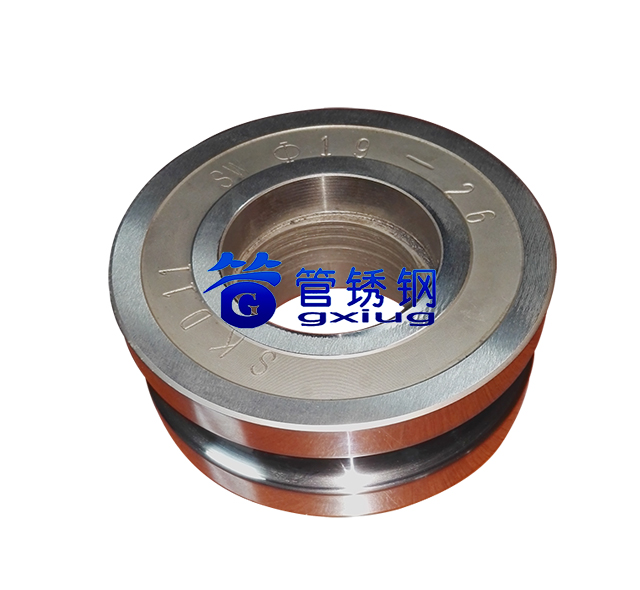

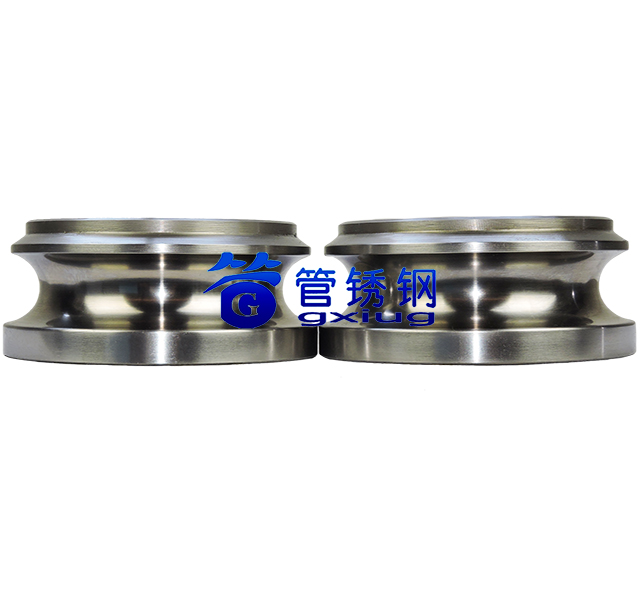

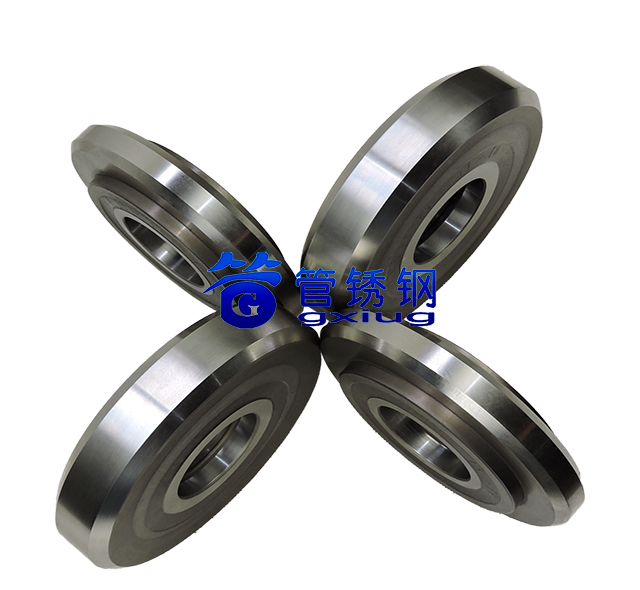

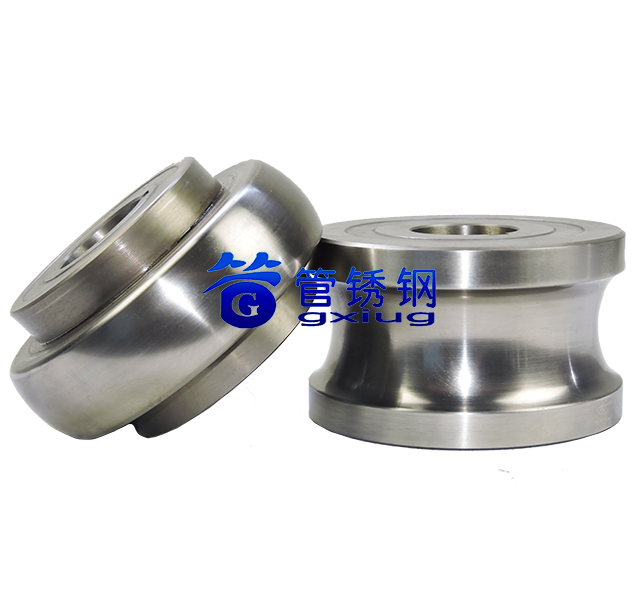

SKD11-D2-Cr12MoV Welded Pipe Mould
Material: Cr12MoV / SKD11 / D2 / Cu Cr alloy etc

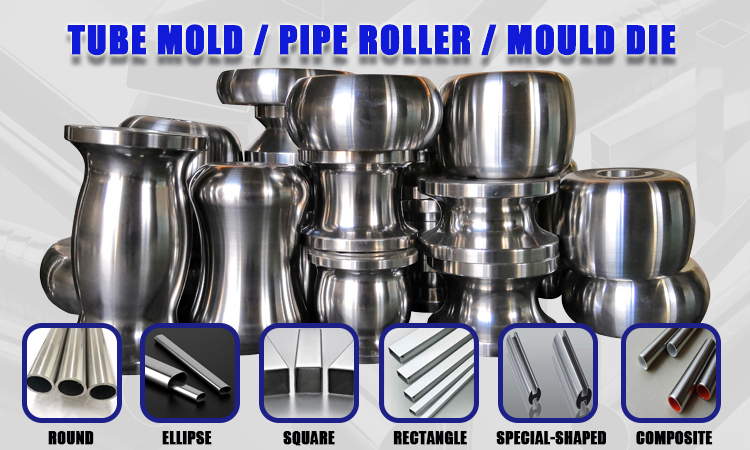

Shape: round / ellipse / square / rectangle / special shape, etc
Hardness: HRC 58-63
Heat treatment : vacuum air quenching deep cooling
Bottom diameter: Φ 110-200 mm
Edge thickness: 10-25 mm
Domestic material brand: Baosteel
Overseas material brand: Daido
Pipe diameter range: Φ 5-325 / 10 * 10-250 * 250mm
Consultation
Product details
SKD11-D2-Cr12MoV Welded Pipe Mould tube roller die is a necessary hardware accessory for manufacturing metal straight seam welded pipe. Under the action of the external force of the welded pipe mould, the steel coil is gradually forced to be cold rolled and curled in the arc of the tube roller, and then welded to obtain the closed welded pipe. The mold can be designed according to the customer's needs, such as round, elliptical, square, rectangular, special-shaped pipes, etc. the welded pipe mold is widely used in the production of decorative pipes, industrial pipes, ERW welded pipes and other pipes.

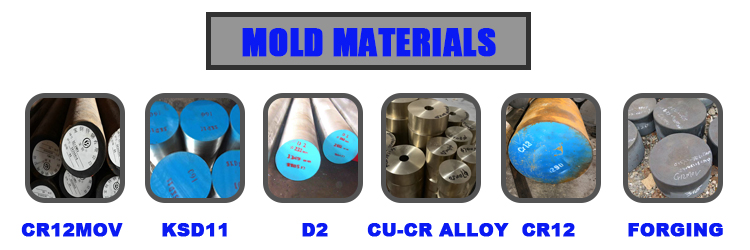

MOULD ROLLER MATERIAL:Cr12MoV / SKD11 / D2 / Cu-Cr Alloy / Cr12 Etc
PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc
HARDNESS:HRC 58—63
Features: Standard tube shape, No Scratch, Long service life

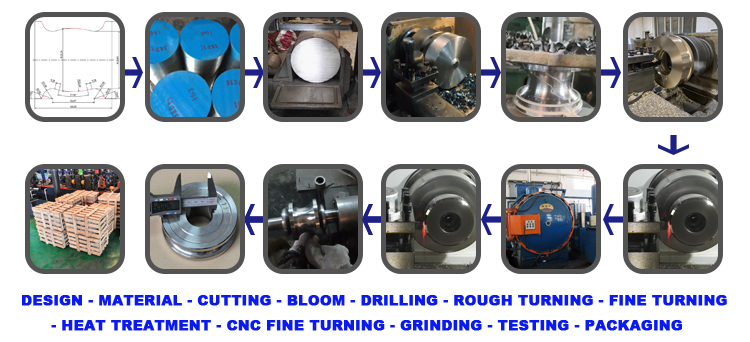

Production Process

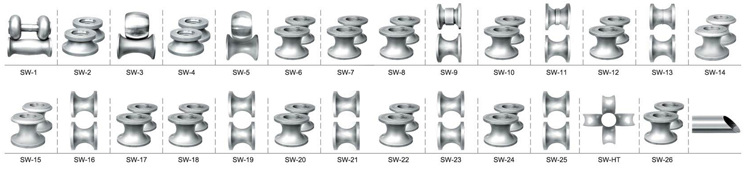

Model & Parameter
SKD11-D2-Cr12MoV Welded Pipe Mould
Tube shape
Wall thickness range
HRC
heat treatment
Material
Ø5—325
0.2—10
0.3—8
rectangle
0.3—8
58—63
If you want to know more product information or other questions, please click here. We will serve you as soon as possible and look forward to cooperating with you.
