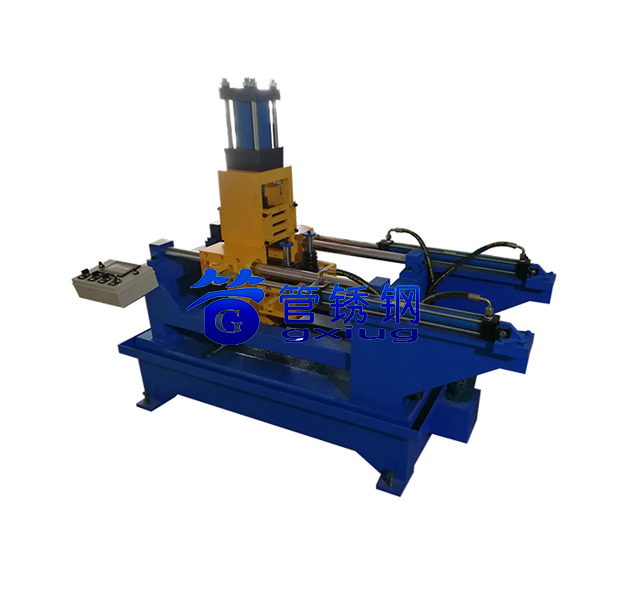

Internal & external weld seam flattening & leveling mechanical equipment of stainless steel metal pipe is specially used for flattening weld reinforcement. Through the function of mandrel and mould, the equipment processes the weld of pipe, the external weld is rolled by mould, the internal weld is passively extruded by mandrel, and it moves back and forth to flatten the weld of pipe and smoothly transition with base metal, so that the pipe can achieve seamless pipe effect.

Tube Material:Stainless Steel 304/316L / Titanium Etc

Pipe Shape:Round Etc

Usage:Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc

                                      Production Process

Model & Parameter

Internal & external weld seam flattening & leveling equipment
Model	GXG-30	GXG-40	GXG-50	GXG-60	GXG-70
Diameter range（mm)	Ø15.8—31.8	Ø25.4—50.8	Ø31.8—76.2	Ø50.8—114.0	Ø76.2—168
Wall thickness range（mm)	0.5—1.5	0.5—2.5	0.5—3.0	1.0—4.0	1.0—5.0
